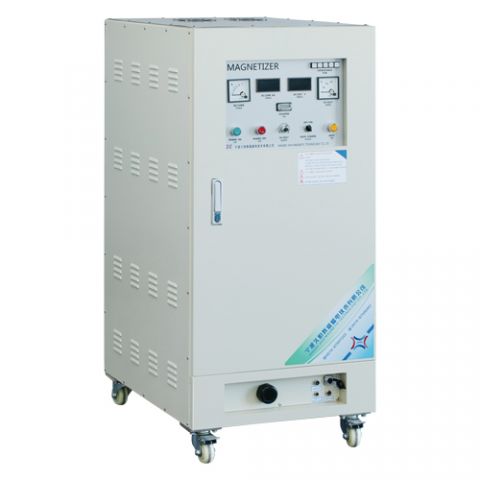

1500V系列多极充磁机
发布日期:2024-01-02浏览次数:941

产品详情
主要特点
● 充磁电压数字显示,机械指针显示50V-1500V可调,内置自动放电功能更安全;
● 输出脉冲电流数字显示功能 ;电容量可切换、并有电容量显示;
● 采用高压直流脉冲无感电容器和 电压电容量精确控制技术 ;
● 电容量可切换、并有电容量指示灯;
● 有单路输出和双路输出两种机型可选配;
Main Feature
● Digital display of magnetizing voltage, mechanical pointer display of 50V-1500V adjustable, built-in automatic discharge function for safer operation.
● Output pulse current digital display function; The capacitance can be switched and displayed.
● Adopting high-voltage DC pulse non-inductive capacitors and precise control technology for voltage and electrical capacity.
● The capacitance can be switched and there is a capacitance indicator light.
There are two models available for selection: single output and dual output.
适合范围
● 小规格钕铁硼轴向多极充磁,小规格粘接钕铁硼,铁氧体、注塑磁轴向、径向多极充磁;
● 塑磁、铁氧体、烧结/粘接钕铁硼、衫钴、等材料;
Suitable Range
● Small specification neodymium iron boron axial multipole magnetization, small specification bonded neodymium iron boron, ferrite, injection molded magnetic axial and radial multipole magnetization.
● Plastic magnetic, ferrite, sintered/bonded neodymium iron boron, cobalt oxide, and other materials.
型号 Model | JH-1510-1S/2S | JH-1520-1S/2S |
输入电压 Input Voltage | AC 220V 50Hz 30A | AC 220V 50Hz 30A |
充磁电压 Output Volt | DC50V-1500V | DC50V-1500V |
输入功率 Input Power | 2500W | 3000W |
最大输出电流 Max.output Curr. | 40000A(Max) | 40000A(Max) |
电容量 Capacitance | 1000UF | 2000UF |
放电能量 Discharge Energy | 1125J | 2250J |
充电时间 Charge Time | 3S(Max) | 4S(Max) |
输出负载 Output Load | 多极充磁夹具/螺线管线圈 | 多极充磁夹具/螺线管线圈 |
外形尺寸 Dimensions | L725mm*W550mm*H1250mm | L725mm*W550mm*H1250mm |
重量 Weight | 约165KG | 约190GK |
