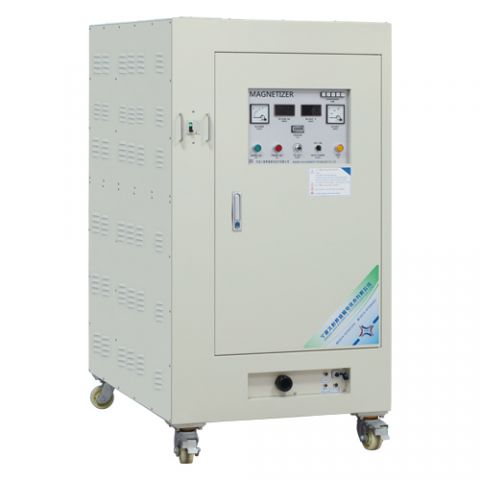

3500V/4000V/6000V系列 超大容量充磁机 01
发布日期:2024-01-02浏览次数:199

产品详情
主要特点
● 充磁电压数字显示,机械指针显示50V-3000V可调,内置自动放电功能更安全;
● 输出脉冲电流数字显示功能 ;
● 采用高压直流脉冲无感电容器和 电压电容量精确控制技术 ;
● 电容量可切换、并有电容量指示灯;
● 有单路输出和双路输出两种机型可选配;
● 可另外增加退磁功能 (/T);
Main Feature
● Digital display of magnetizing voltage, mechanical pointer display of 50V-3000V adjustable, built-in automatic discharge function for safer operation.
● Output pulse current digital display function;
● Adopting high-voltage DC pulse non-inductive capacitors and precise control technology for voltage and electrical capacity.
● The capacitance can be switched and there is a capacitance indicator light.
● There are two models available for selection: single output and dual output.
● Additional demagnetization function (/T) can be added.
适合范围
● 中大尺寸、高矫顽力钕铁硼磁性材料充磁;
● 中小规格钐钴材料充磁;
● 大直径电机转子,定子整体充磁,大直径辐射环;
● 中大尺寸钕铁硼、铁氧体喇叭充磁;
● 塑磁、铁氧体、烧结/粘接钕铁硼、衫钴、等材料;
● 永磁直流电机组件充磁;
Suitable Range
● Magnetization of medium to large size, high coercivity neodymium iron boron magnetic materials.
● Small and medium-sized samarium cobalt material magnetization.
● Large diameter motor rotor, integral magnetization of stator, large diameter radiation ring.
● Magnetization of large-sized neodymium iron boron and ferrite horns.
● Plastic magnetic, ferrite, sintered/bonded neodymium iron boron, cobalt oxide, and other materials.
● Magnetization of permanent magnet DC motor components.
型号 Model | JH-3590-1S/2S | JH-35120-1S/2S | JH-35200-1S/2S | JH-40300-1S/2S |
输入电压 Input Voltage | AC 380V 50Hz 60A | AC 380V 50Hz 70A | AC 380V 50Hz 80A | AC 380V 50Hz 80A |
充磁电压 Output Volt | DC50V-3500V | DC50V-3500V | DC50V-3500V | DC50V4000V |
输入功率 Input Power | 12KW | 20KW | 35KW | 45KW |
最大输出电流 Max.output Curr. | 40000A(Max) | 40000A(Max) | 40000A(Max) | 40000A(Max) |
电容量 Capacitance | 9000UF | 12000UF | 20000UF | 30000UF |
放电能量 Discharge Energy | 55125J | 73500J | 122500J | 240000J |
充电时间 Charge Time | 12S(Max) | 16(Max) | 20S(Max) | 25S(Max) |
输出负载 Output Load | 多极充磁夹具 / 螺线管线圈 | 多极充磁夹具 / 螺线管线圈 | 多极充磁夹具 / 螺线管线圈 | 多极充磁夹具 / 螺线管线圈 |
外形尺寸 Dimensions | L1290mm*W900mm *H1830mm | L1290mm*W1100mm *H1830mm | L1680mm*W1100mm *H1830mm | L1290mm*W3600mm *H1830mm |
重量 Weight | 1000KG | 1350KG | 2000KG | 4300KG |
